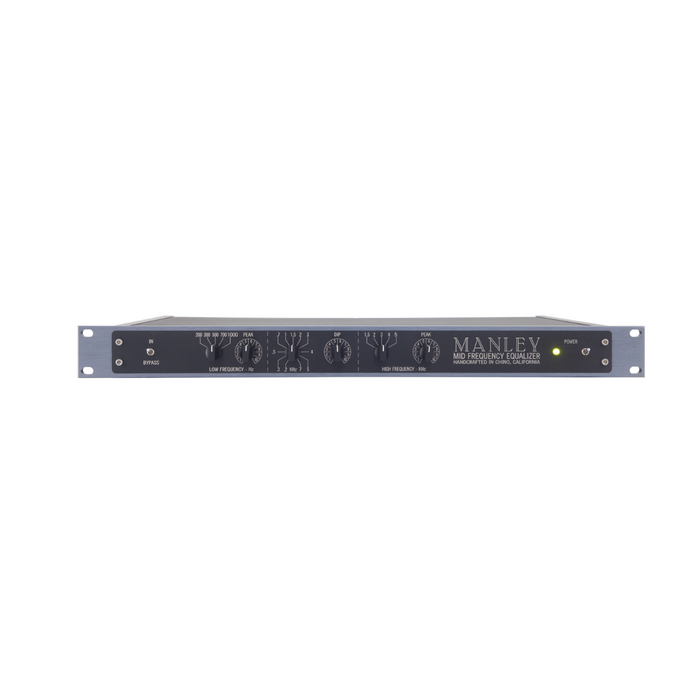

Manley Mid Frequency EQ

Por encomienda


Precio original $3,299.00 - Precio original $3,299.00
Precio original De:

Por: $3,299.00
ENTREGA NO BRASIL:
+ frete + taxa importação
$3,299.00 - $3,299.00
Precio actual Por: $3,299.00

Veja mais

¿Quieres adquirir este producto con toda la comodidad y soporte en portugués?
Ponte en contacto para más información y realizar tu pedido.

Entrega:

Shipping to Brazil: Product Value + Shipping + Import Fees.

Get in touch to simulate the final value.

Recibe tu pedido

Directamente desde EE. UU.

Paga hasta en 12 cuotas

Por tarjeta de crédito o PIX

Servicio en portugués
Soporte y garantía

En Brasil


This single-channel mid-frequency EQ is the secret weapon for vocals, guitars, snares, and all the other midrange instruments that form the basis of the mix.


Especially useful for mid-band oriented instruments such as guitars, vocals, harmonicas and violins, the MID FREQUENCY ENHANCED PULTEC EQ (type MEQ-5) shares the same features and specifications as our 'EQP-1A' version. The differences are in the passive EQ section: in EQ MID, the DIP and PEAK controls work in much sharper bell-shaped curves centered on the selected frequencies, which gives the producer-engineer more precise control over the vital midrange. importance and makes this indispensable unit to master engineers. The MID EQ also completely fills the frequency gaps between the low and high frequency sections of our improved Pultec EQP-1A type EQ; thus, combining the two provides a more flexible palette of tracking or mastering possibilities.

Especially useful for mid-band oriented instruments such as guitars, vocals, harmonicas and violins, the MID FREQUENCY ENHANCED PULTEC EQ (type MEQ-5) shares the same features and specifications as our 'EQP-1A' version. The differences are in the passive EQ section: in EQ MID, the DIP and PEAK controls work in much sharper bell-shaped curves centered on the selected frequencies, which gives the producer-engineer more precise control over the vital midrange. importance and makes this indispensable unit to master engineers. The MID EQ also completely fills the frequency gaps between the low and high frequency sections of our improved Pultec EQP-1A type EQ; thus, combining the two provides a more flexible palette of tracking or mastering possibilities.


SPECIFICATIONS


  • Vacuum Tubes: 1 x 12AU7 gain and 1 x 12BH7 (or 6414 or 5965) Double Triodes White Followers

  • MANLEY input transformer with pure nickel laminations encapsulated in a mu-metal case. 3K Ohm Z Input

  • PHASE REVERSE switch for balanced XLR input

  • Alternate 1/4" HI-Z Transformerless Input (5K Ohm)

  • BYPASS and AUTO-MUTE switch with warm-up delay

  • Quiet Conductive Plastic PEAK & SHELF Controls

  • Greyhill frequency selector switches with sealed gold contact

  • High current drive <50 Ohm LO-Z XLR and 1/4" outputs

  • XLR outputs coupled to balanced transformer

  • Flat frequency response from 10 Hz to 70 KHz

  • <0.01% THD at 1kHz

  • Signal to noise ratio: 116 dB

  • FEEDBACK / GAIN adjustable: Unit ±5 dB

  • Max output: +30 dBv

  • Power consumption: 18 watts

  • Operating Mains Voltage: Units are built specifically for the mains voltage of the original destination country: 100V, 120V or 220-240VAC as indicated on the serial number badge. The power transformer must be replaced to change the operating voltage of the electrical network. 120VAC units cannot be rewired to place the power transformer primaries in series for 220-240V operation or a large humming radiated field will develop. In case of changing locations/voltages, the power transformer must be replaced with one dedicated to the voltage at which it will operate.

  • Mains voltage frequency: 50 ~ 60 Hz

  • Dimensions: 19" x 1 3/4" x 10" (occupies 1u)

  • Shipping weight: 12 pounds.
