Digital Audio Labs Livemix-16

The MIX-16 is the central mixer of the Livemix personal monitor system. The MIX-16 provides mix streams as well as power to each of the connected personal mixers.

The MIX-16 will usually be placed next to personal mixers, probably on a rack near the stage. The MIX-16 receives input data via a network cable, either from the AD-24 (shielded) or from a Dante network via the LM-DANTE-EXP Dante card.

Each MIX-16 port supports two discrete personal monitor mixes. Connect a single CS-DUO or up to two CS-SOLOs to each port with a standard network cable. The maximum combined distance of CAT5e cable (shielded or unshielded) is 100 meters.

• 24 channels + 4 accessory channels

  The MIX-16 receives 24 channels of audio from the AD-24 (for analog sources) or the optional LM-DANTE-EXP board (for digital sources from a Dante™ network). This is more than enough to meet the needs of churches, studios, and live event stages, while still being simple to use with the intuitive mixing interface.



• 24-bit mixing


  High-quality audio processing means mixing is done faster and easier. Clear, smudge-free instrument separation and accurate sound reproduction make Livemix the best-sounding personal monitor mixer on the market. Digital Audio Labs' decades of experience in digital audio deliver the best sound mixes possible.



• Expansion port (optional card)


  With the built-in expansion port, you never have to worry about future compatibility. The world of audio is always changing and Livemix will support these changes so you can be confident that your personal monitor system will provide you with many years of first-class functionality.



• Analog output for transmitters

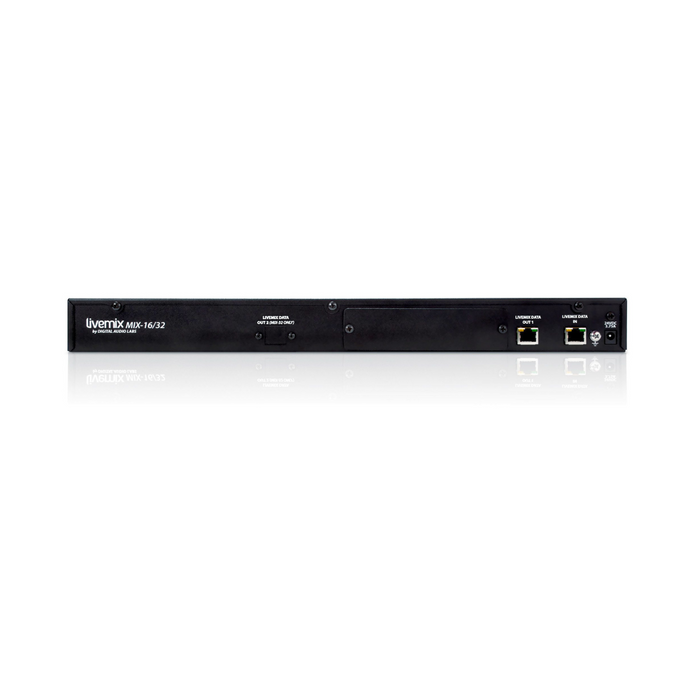

  Each MIX-16 has an output port for connecting to the optional Livemix DA-816 analog output unit. This lets you assign personal monitor mixes to one of the 8 stereo outputs for easy wireless in-ear monitor integration.



• Supports up to 16 personal mixers

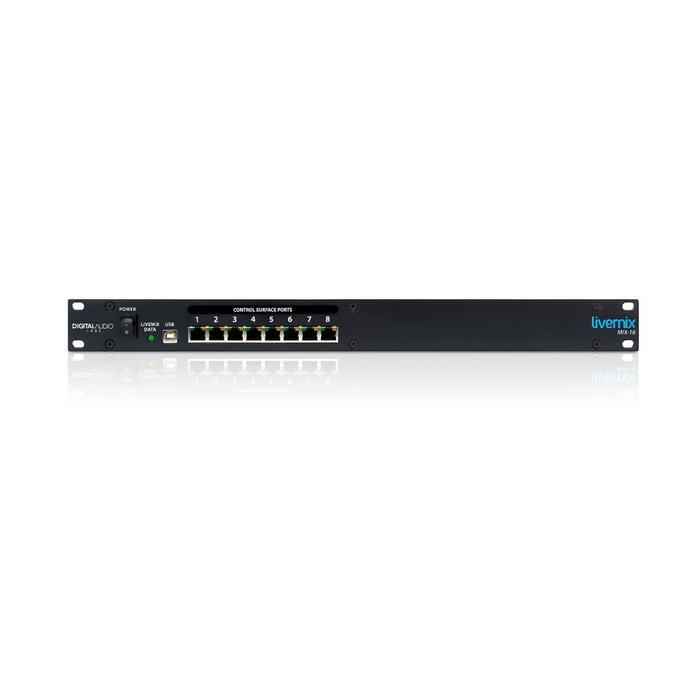

  8 front-panel Ethernet ports provide power and mixing capabilities for up to 16 personal monitor mixes. This can be through 8 CS-DUO dual mix units, 16 CS-SOLOs single mix or a combination.
